The firmware revision history is available
here.
=================
== Version 4.3 ==
=================
03Aug2018
- VM: comms profile 5 was 8bits, odd_parity, 2stop but should have been no_parity as per MODBUS standards
- VM: reading the internal analogue reference via a float (ie in the VM) now returns a normalised number based on the ST factory calibration value (multiply by 3.3 to get Vcc)
- VM: floatFromU was not working correctly for negative numbers.
- VM: OBLCD_Dim may now be used without throwing an error on boards that only support a virtual LCD, it is simply ignored.
- STM32F3: can now measure the 3V3 rail based on an internal reference
- STM32F4: can now read the 3V3 rail
- VM: A race condition existed in the QuadratureCounter that could cause wrong readings to be returned, often this was seen when moving backwards with the count being returned as a large positive number rather than a small negative number. Thanks to Michael B for spotting this.
- VM: ARM controllers now support UVtoNV for NVEM page 1 and up.
- VM: ARM based OBQC_fGet used to return 0 thru 16777215, but this meant moving backward from 0 would cause a jump to 16777215. So now it returns negative, which is the same as 8bit SPLat controllers.
- VM: YieldTask may now be called in single tasking mode without throwing en error. This is especially useful in subroutines which may be shared by both single and multi-tasking applications.
- VM: stop I/O messages during app upload

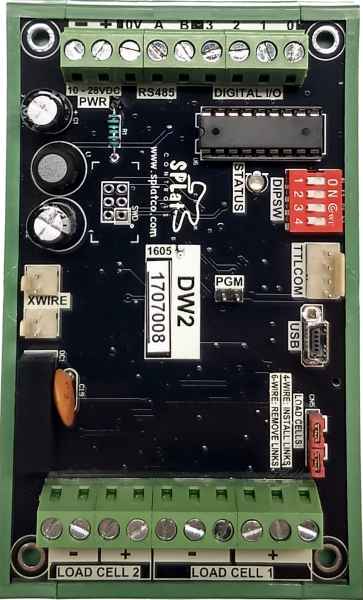

- DW2 demo, can now choose 485/TTL when there's an Xwire error
- VM: Oh dear, RTCDateToUV, RTCDMToUV, RTCHHMMToUV, RTCHHMMSSToUV were all incorrectly using the _current_time_ rather than the values in the RTC registers. So functions like OBLCD_HHMMSS were displaying the current time rather than the time in the RTC registers.
- VM: the delay between a slave receiving and replying was to quick causing legacy controllers to miss the response, increased to around 500us.
- VM: Fixed InputOM that was returning wildly incorrect values.
- VM: SPxChOut is no longer NULL terminated, allowing V to be any value without impacting the data in U.
- ARM: fixed a reset that could occur if Xwire Slave was restarted when it & MODBUS Slave were operating simultaneously.
- ARM: WarmBoot now doesn't cause an error, it just restarts the VM. This is the same behaviour as the 8bit controllers.
- ARM: SEXI was incorrectly calculating the output size limit, so a value of 37 outputs which is legal was throwing a "too big" error.
- VM: SPx callbacks modified to receive the registered address, this allow multiple instances to exist.
- VM: floatFromU and fixToU were corrected to treat W as big endian when transferring between U
- DW2: default SEXI app now supports address change on the fly and auto detect of TTL/485 ports.
- ARM STMicro boards: If MODBUS was set to 8 data bits even parity, a 0x00 would cause a LIN break and resulted in the packet being dumped resulting MODBUS errors (typically no response if the SPLat is a MODBUS slave).
- VM: sometimes a controller running MODBUS would reset when SPLat/PC connected due to an incorrect method of mutex release when closing the MODBUS port.
- ARM: a 16bit and 24bit ID is now available on all ARM boards. These are a CRC of a bigger ID so there's a small chance two controllers may have the same ID (chance is obviously less with the 24bit version).
- VM: fixed a serious bug in fSTTimeSince & STTest that 2 days after the controller is turned on made both functions think the elapsed time is always greater than 167772.16s.
- ARM: The SPLat/VM on ARM boards was throwing a RAM OutOfBounds error when trying to access byte 250 which is actually the legal last address.
- VM: Doing a fGetTimer or Test quickly after starting a timer may sometimes have caused the timer to expire immediately.
- DW2: switching channels wasn't throwing away the rubbish samples.
- VM: WtoU, QtoU, UtoW, UtoQ, fixToU, floatFromU, would incorrectly error when loading a float into U[16+]
